通用范围 General use range
单向型流量控制阀，在气路中调节气体的流量，气流正向流动时节流，反向流动时不节流，以改变气缸等执行元件的单向运动速度。
The one-way flow control valve is used for regulating air flow in gas-line, it conducts throtting function when air-flow flows in forward direction,
the throtting function doesn＇t work when reversal flowing, which changes the one-way motion speed of cylinder and other execution component
etc.

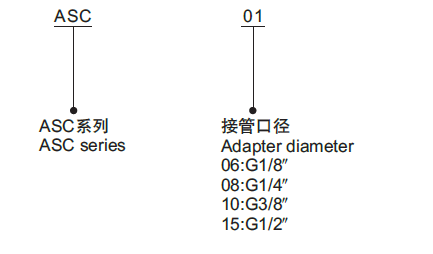

型号说明 Model expressing methods

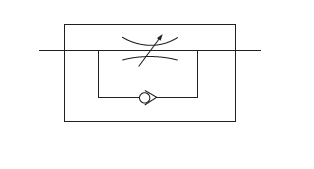

图形符号 Graphic symbol


标准规格 Standard specification


规格/项目 Specification/Item		接管螺纹 Adapter thread	使用流体 Ude fluid	开启压力 Open pressure	压力范围 Pressure scope	使用温度 Environment temp
精密型 Precise	ASC-06	G1/8	压缩空气 Compressed air	0.03MPa	0.05~1.2MPa	-5~99℃
	ASC-08	G1/4
	ASC-10	G3/8
	ASC-15	G1/2

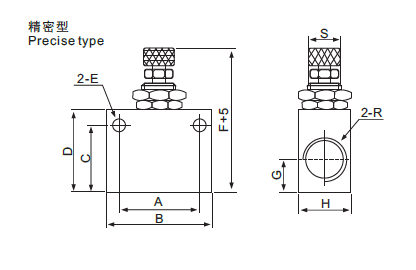

外形尺寸图(mm) Outline dimension drawing

型号 Model	ASC-06	ASC-08	ASC-10	ASC-15
A	20	20	38	38
B	35	35	50	50
C	21	21	32	32
D	26	26	40	40
E	φ4.5	φ4.5	φ5.5	φ5.5
F	50	50	68	68
G	10	10	16	16
H	16	19	25	25
R	G1/8	G1/4	G3/8	G1/2
S	M12	M12	M16	M16
